Keyboard Tray fitting instuctions

For keyboard tray

• Left or right side sliding
• Mouse tray with pad
• Height and angle adjustable mounting brackets
• Special compartment for pen pencil ruber pin & other accessories
• Special pressure lock at extended position
• Maximum load 12 kg

Fitting instruction for keyboard drawer

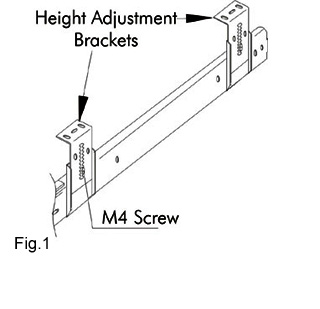

• Assemble height adjustment brackets on the slides
  using pan screw provided as in fig 1

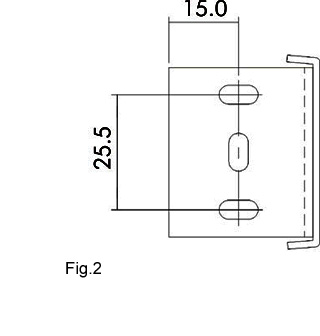

• Drill as per drilling diagram fig 2


• Height adjustment bracket should be adjusted for desired height
• Screw the keyboard on the table
• Slide the keyboard tray out
